This 32-channel FWDM module integrates CATV 1550nm transmission with PON 1310/1490nm and XGS-PON 1270/1577nm reception for FTTH/FTTX networks. Using TFF technology, it features low insertion loss (≤0.8dB), high isolation (≥30dB), and stable performance in harsh environments (-40°C to 85°C). The 1U rack design with LC/UPC connectors supports hybrid signal transmission. Two models offer reflection isolation of ≥15dB (A) or 20dB (B), suitable for CATV, optical amplifiers, and fiber access systems.

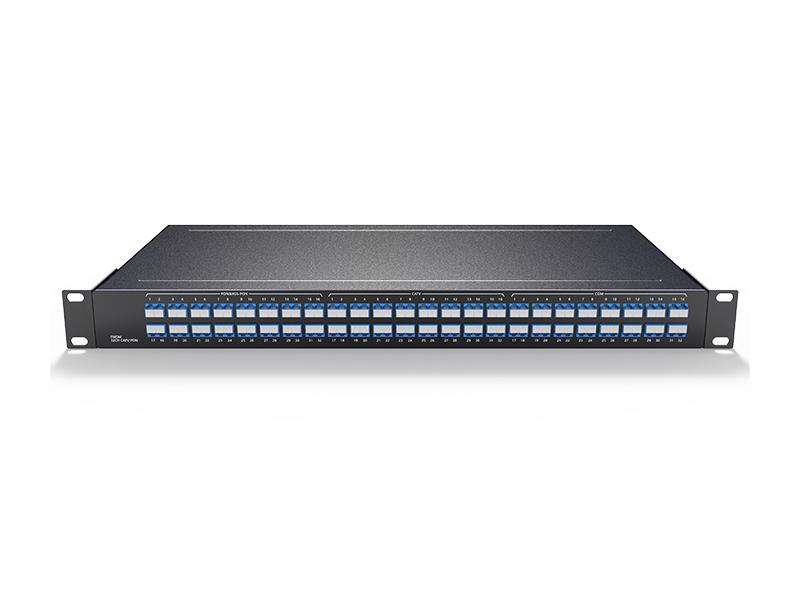

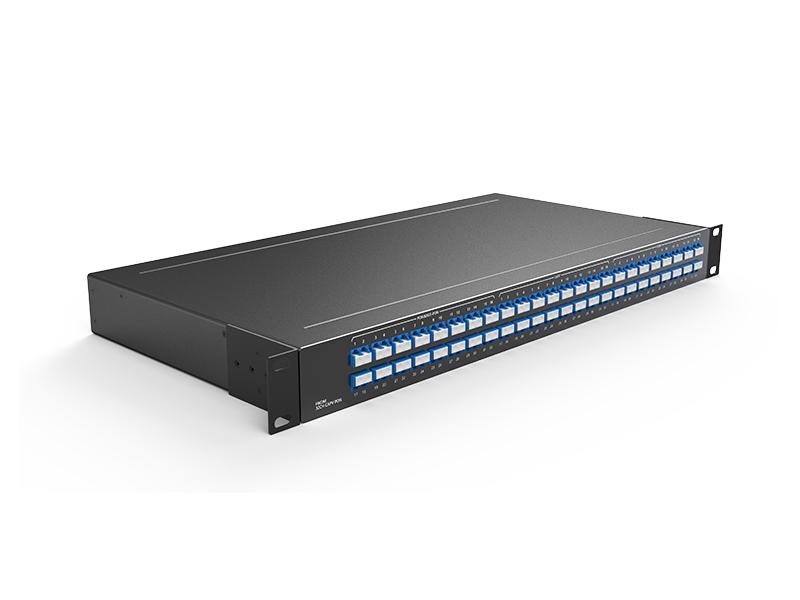

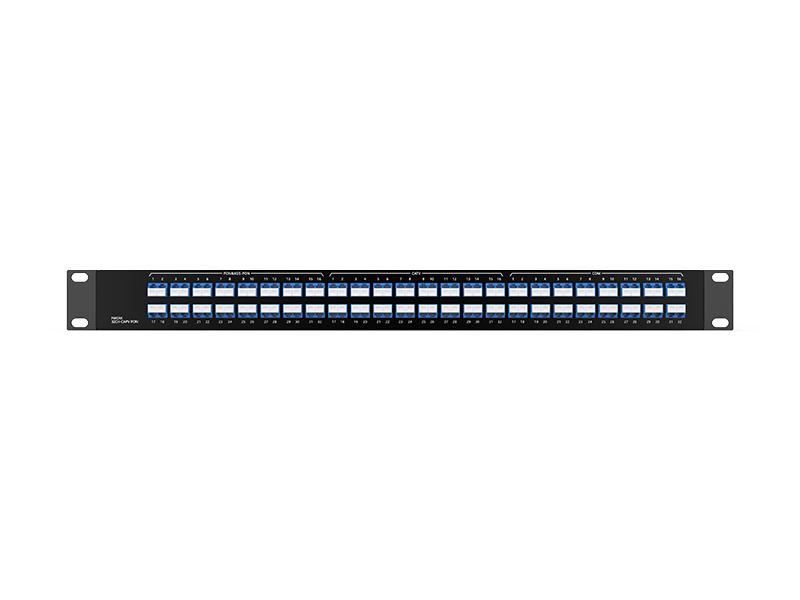

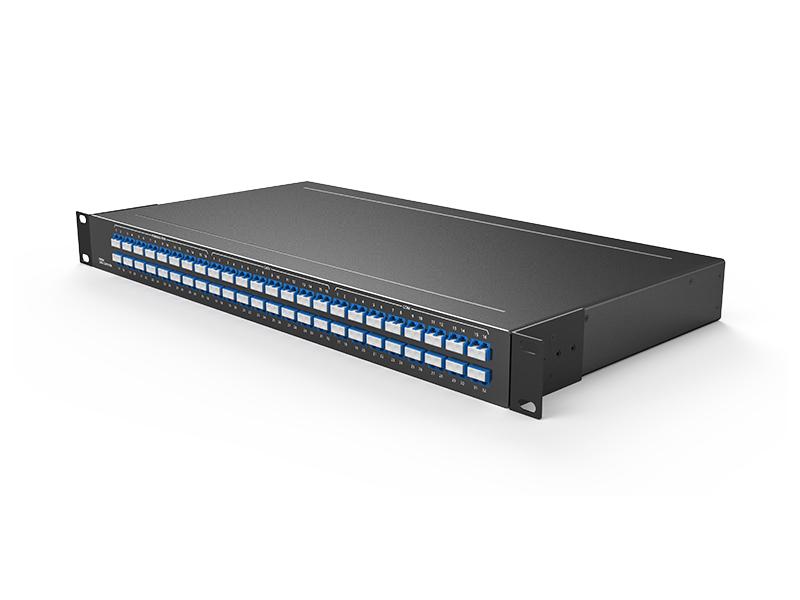

32Channels FWDM TX CATV 1550nm RX PON 1310/1490nm & XGS-PON 1270/1577nm LC/UPC 1U Rack
32FW-1U01-T55R3149-2757A/B
FIBERWDM Provide FWDM TX 1550nm RX PON 1310/1490nm & XGS-PON 1270/1577nm is low loss and reliable performances.
It works in FTTH/FTTX, in PON system works on 1310/1490 &1270/1577nm, and CATV signal is delivered over same fiber using 1550nm.

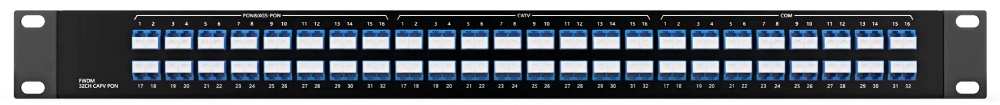

Product Penal

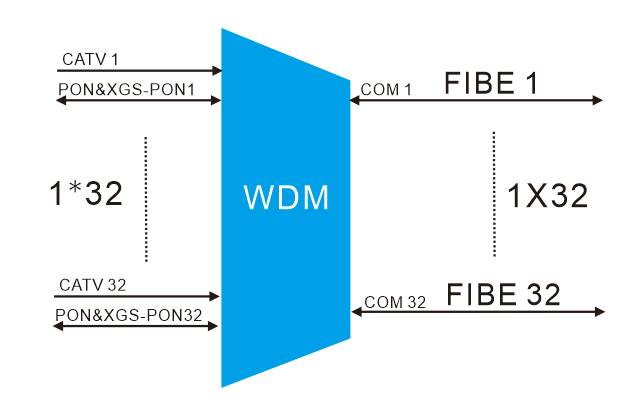

Application
Features
u Wide bandwidth
u Low insertion loss
u High channel isolation
u Exceptional reliability and stability
Applications
u Optical amplifiers
u CATV
Specifications
| Wavelength | TX1550 RX1310/1490nm&1270/1577nm | Technology | TFF (Thin Film Filter) |
| Passband | 1540~1560nm | Reflection | 1260~1500&1574~1620 |
| Passband ripple | ≤0.30dB | IL @ Passband | ≤0.80dB |
| Reflection band ripple | ≤0.20dB | IL @ Reflection | ≤0.60dB |
| Passband isolation | ≥30dB | Reflection isolation | ≥15dB (A Type) 20dB (B Type) |
| Polarization mode dispersion | ≤0.2ps | Thermal Stability | ≤0.005N |
| Directivity | ≥50dB | Return loss | ≥45dB |
| Optical power handling | ≤500mW | Temperature | Operating -40 to 85°C Storage -40 to 85°C |
| Fiber type | SMF-28e | Package dimension | 44*440*230MM |
Note：1) All the specifications are based on the devices without connectors, and guaranteed over wavelength, polarization and temperature.
2) PMD and chromatic dispersion values are guaranteed by design.
3) Specifications are subject to change without notice

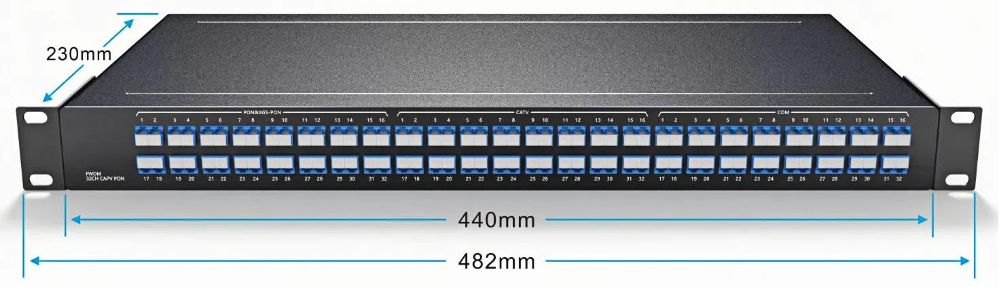

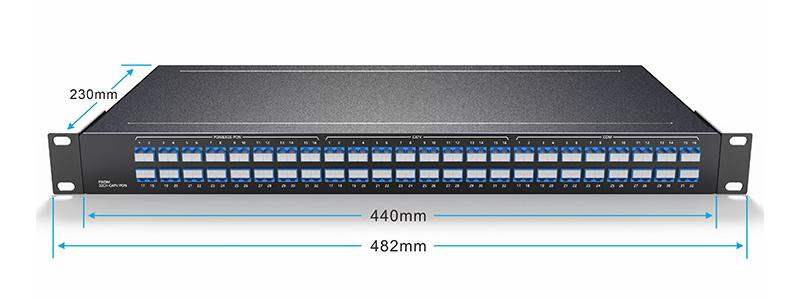

Steel Dimensions drawing（mm）
Ordering information
| Ordering information | Specifications |
| 32FW-1U01-T55R3149-2757A | 32Channels FWDM TX CATV 1550nm RX PON 1310/1490nm & XGS-PON 1270/1577nm LC/UPC 1U Rack Reflection isolation ≥15dB |
| 32FW-1U01-T55R3149-2757B | 32Channels FWDM TX CATV 1550nm RX PON 1310/1490nm & XGS-PON 1270/1577nm LC/UPC 1U Rack Reflection isolation 20dB |
