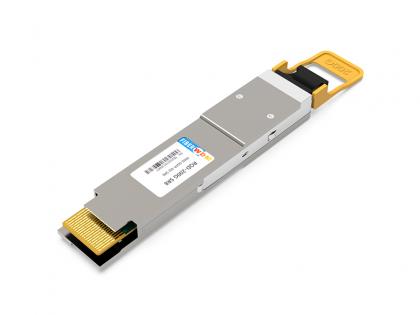

Trasmettitore 200G QSFP56 SR4 100m 850nm PAM4

Features

QSFP56 Serial Optical Interface

4x50G PAM4 retimed 200GAUI-4 C2M electrical interface

  • MPO-12 connector
  • 4 channel VCSEL array and 4 channels PIN photodetector array >Maximum link length of 70m on OM3 or 100m on OM4



QSFP MSA Compliant

  • Hot Pluggable QSFP56 form factor
  • Compliant with SFF8636 Rev 2.10a



Support Protocol

  • Compliant with IEEE 802.3cd



Low Power Consumption

  • Less than 5W in temperature range of 0 to 70℃



Applications

  • 200GBASE-SR4200G Ethernet
  • Data center



  • Dettagli del prodotto

200G QSFP56 SR4 100m 850nm MPO PM4 Optical Transceiver



Functional Block Diagram



200G QSFP56 SR4



General Description

200G QSFP56 SR4 Optical Transceiver modules are designed for use in 200Gigabit Ethernet links over OM3/OM4 multimode fiber. They are compliant with the QSFP MSA and with IEEE 802.3cd 200GBASE-SR4 specification. Digital diagnostics functions are available via the I2C interface as specified by SFF-8636.The transceiver is RoHS 2.0 compliant and lead-free per Directive 2011/65/EU.



Absolute Maximum Ratings

Parameter

Symbol

Min

Max

Unit

Storage Temperature

Ts

-40

85

Relative Humidity (non-condensation)

RH



85

%

Supply Voltage

Vcc

-0.5

3.6

V

Receiver Damage Threshold, per Lane

PR dmg

5



dBm



Recommended Operating Conditions

Parameter

Symbol

Min

Max

Unit

Operating Case Temperature

Top

0

70

Power Supply Voltage

Vcc

3.135

3.465

V

Total Power Consumption

Pc



5

W

Bit Rate

BR



212.5

Gbps

Fiber Length on OM3 MMF





70

m

Fiber Length on OM4 MMF





100

m



Transmitter Optical Interface

Parameter

Symbol

Min

Typical

Max

Unit

Data rate per lane

DR



26.5625



Gbd

Modulation format



PAM4



Center Wavelength

λ

840

850

868

nm

RMS spectral width

σ





0.65

nm

Average Launch power, each lane

Pavg

-6.5



4

dBm

Optical Power OMA, each Lane

PoMA

-4.5



3

dBm

Launch power in OMA outer minus TDECQ



-5.9





dBm

Transmitter and dispersion eye closure (TDECQ), each lane

TDECQ





4.5

dB

Extinction ratio

ER

3





dB

Optical Return Loss Tolerance

ORLT





12

dB

Optical Power for TX DISABLE







-30

dBm

Encircled fluxb¹



≥86%at 19 um

≤30%at 4.5 um



Notes:

1.Measured into type A1a.2 or type A1a.3, or A1a.4,50 um fiber, in accordance with IEC 61280-1-4



Receiver Optical Interface

Parameter

Symbol

Min

Typical

Max

Unit

Data rate per lane

BR



26.5625



Gbd

Modulation format



PAM4



Damage threshold



5





dBm

Average receive power, each lane



-8.4



4

dBm

Receiver reflectance

Rr





-12

dB

Receiver sensitivity, each lane¹



RS=max (-6.5, SECQ-7.9)

dBm

Stressed receiver sensitivity, each ane







-3.4

dBm

Rx LOS

Assert



-30





dBm

De-assert







-9

dBm

Hysteresis



0.5





dB

Notes:

1.Receiver sensitivity is informative and is defined for a transmitter with a value of SECQ.  Measured with conformance test signal at TP3 for BER = 2.4E-4 Pre-FEC.



High speed Electrical Specifications

Parameters

Min

Typical

Max

Unit

Supply voltage

3.135



3.465

V

Supply Current





1.59

A

Input differential impedance

90

100

110

Ω

Differential pk-pk input Voltage Tolerance

900





mVpp

Differential data output swing





900

mVpp

Bit Error Rate Pre-FEC





2.4E-4



Input Logic Level High

2



Vcc

V

Input Logic Level Low

0



0.8

V

Output Logic Level High

Vcc-0.5



Vcc

V

Output Logic Level Low

0



0.4

V



PIN Definitions

QSFP56 pin-out as being defined by QSFP MSA,PIN Descriptions are as follows:

200G QSFP56 SR4



Package dimensions

shows the package dimensions of the module. Package dimensions are specified in QSFP MSA.

200G QSFP56 SR4





Ordering Information

Part Number

Temperature Range

Distance

Fiber Type

E/O

O/E

RQ56-200G-SR4

0 to 70℃

100m

MMF

VCSEL

850nm

PIN

Vuoi sapere su questo prodotto?

INVIA UN MESSAGGIO
lasciate un messaggio

Se .Sei interessato ai nostri prodotti e vuoi sapere più dettagli, ti preghiamo di lasciare un messaggio qui, ti risponderemo non appena saremo

prodotti correlati
200G QSFP56 FR4 2KM Ricetrasmettitore ottico 200G QSFP56 FR4 2KM LC PAM4
Impresaures Trasmettitori e ricevitori a 4 canali duplex Array CWDM LD e PD integrato Compatibile con l'interfaccia di connessione LC/UPC Alimentazione singola +3,3 V Funzione DDM implementata Fattore di forma QSFP56 hot plug Lunghezza di trasmissione fino a 2 km Bassa dissipazione di potenza: <6,5 W Certificato internazionale di sicurezza laser di classe 1 Intervallo di temperatura operativa: 0 ℃ ~ +70 ℃ Conforme alla normativa ROHS10                                                                                                Applicazioni Ethernet 200GBASE-FR4 Collegamenti con switch e router Centri dati Altri requisiti di interconnessione 200G. Standard IEEE802.3cd CMIS Rev 4.0 OIF-CEI-04.056G-VSR-PAM4 IEEE 802.3bs Allegato 120E SFF-8024 Rev. 4.6 SFF-8679 Rev1.8 SFF-8665 Rev1.9
Dual Fiber 8CH CWDM MUX DEMUX doppia fibra 8ch 1470nm ~ 1610nm CWDM . MUX . Demux .Con 1310nm e monitorare la porta
CWDM . MUX .Demux, multiplexing fino a 8 canali su doppia fibra Monitor Porto per la risoluzione dei problemi, 1310nm Porto per il traffico legacy Passivo, Protocollo trasparente per Ethernet, FC, OTN, Sonet / SDH, ecc. Completamente compatibile con tutti ITU-T 1G / 10G / 25g CWDM .ottica applicato alla metropolitana, regionale CWDM reti

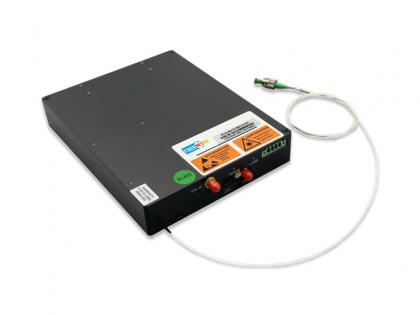

MEMS Fiber Optical Switch 1XN .Interruttore ottico MEMS.
Caratteristiche Provato MEMS Duratabilità e affidabilità Fattore di forma compatta Tempo di commutazione velocequalificato a Telcordia GR-1073-Core e rohs applicazioni OpticalSignal .Commutazione Androuting Protezione e restauro della rete otticaMonitoraggio del percorso ottico (funzionanteWith OTDR o OCM) Condivisione delle risorse di strumentazione
12G Video  SFP+  Transceiver 12g Video SFP + ottico ricetrasmettitore Supporto 4K 60Hz .video
12g Video SFP ottico ricetrasmettitore Modulo, supporto 4K 60Hz .Video e fino a 20 km Trasmissione. Funziona in video ottico Trasmissione.

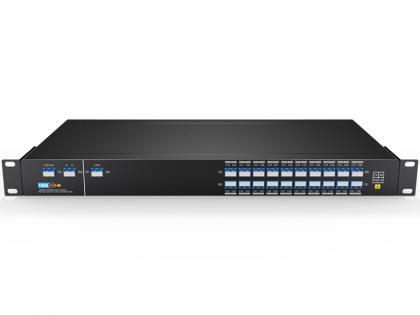

 Single Fiber 4Channels(8waves) 1470-1610nm CWDM MUX/DEMUX , LC/UPC, Plug-in LGX Box and 2slot 1U Rack . 4channel a fibra singola (8 onde) 1470-1610nm CWDM Mux/Demux, LC/UPC, Box LGX plug-in e rack 2Slot 1U
