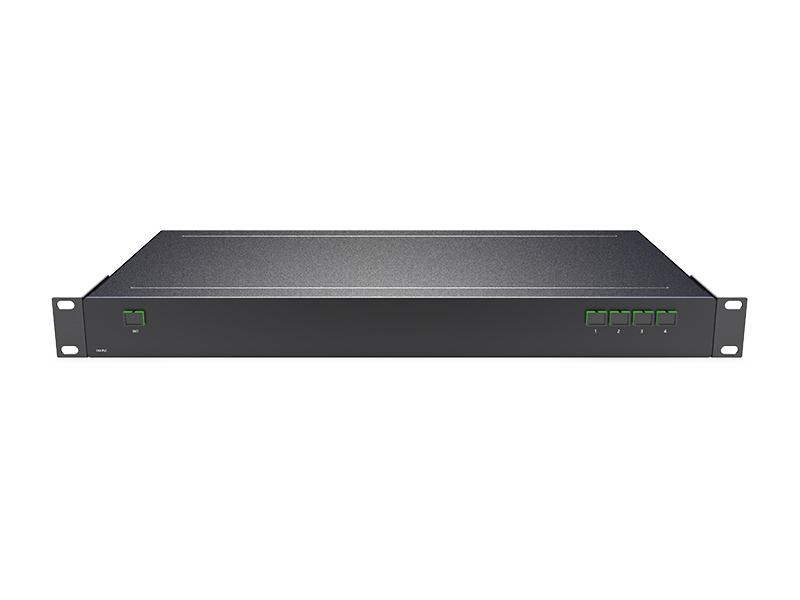

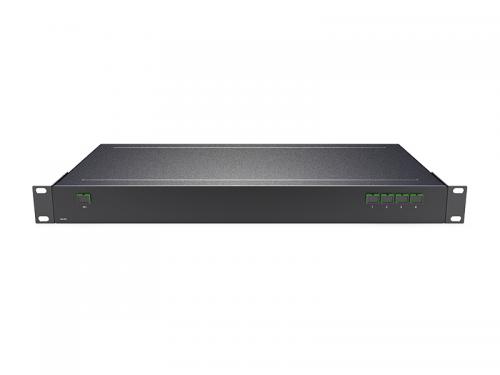

Splitter PLC 1X4 SC/APC 1U Rack 440*200*44mm
Fiberwdm’s PLC are developed based on unique silica glass waveguide process with reliable precision aligned fiber pigtail in a miniature package, it provides a low cost light distribution solution with small form factor and high reliability. The PLC devices have high performance in terms of low insertion loss, low PDL, high return loss and excellent uniformity over a wide wavelength range from 1260nm to 1620nm and working in temperature from -40℃ to +85℃. The PLC devices have standard configurations of 1*4, 1*8, 1*16 and 1*32 configurations, as well as customized structures of 2*8, 2*16, 2*32 and 2*64
Product
1*4 PLC SC/APC 1U Rack
Features:
Applications
Compliance
1*N PLC Specifications
| Port Configuration | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 | |
| Fiber Type | SMF-28e or customer specified | ||||||
| Operating Wavelength (nm) | 1260～1650 | ||||||
| Insertion Loss | Typical | 3.7 | 6.8 | 10.0 | 13.0 | 16.0 | 19.5 |
| Max | 4.0 | 7.2 | 10.5 | 13.5 | 16.9 | 21.0 | |
| Loss Uniformity (dB) | Max | 0.4 | 0.6 | 0.8 | 1.2 | 1.5 | 2.5 |
| Return Loss (dB) | Min | 50 | 50 | 50 | 50 | 50 | 50 |
| Polarization Dependent Loss(dB) | Max | 0.2 | 0.2 | 0.3 | 0.3 | 0.3 | 0.4 |
| Directivity (dB) | Min | 55 | 55 | 55 | 55 | 55 | 55 |
| Wavelength Dependent Loss(dB) | Max | 0.3 | 0.3 | 0.3 | 0.5 | 0.5 | 0.8 |
|
Temperature Dependent Loss (-40～85°C) (dB) |
Max |
0.5 | 0.5 | 0.5 | 0.8 | 0.8 | 1.0 |
|
Operating Temperature (°C) |
-40~85 | ||||||
|
Storage Temperature (°C) |
-40~85 | ||||||
|
Packaging Size (mm) |
40×4×4 | 40×4×4 | 40×4×4 | 40×4×4 | 50×7×4 | 60×12×4 | |
|
19’’ Rack mount Package(mm) |

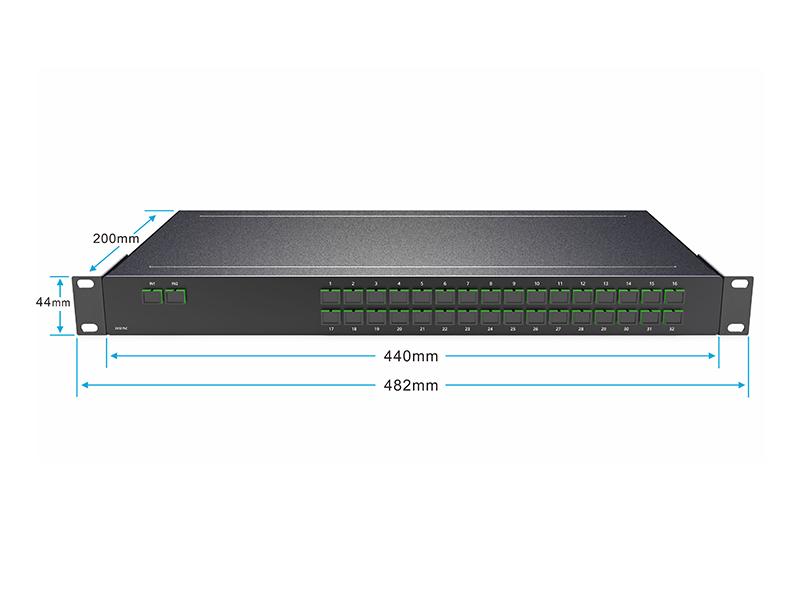

1U, 440*200*44 | ||||||
Notes: 1.Specifications without fiber connectors.
2.Room temperature test .
2*N PLC Specifications
| Port Configuration | 2×2 | 2×4 | 2×8 | 2×16 | 2×32 | 2×64 | |
| Fiber Type | SMF-28e or customer specified | ||||||
| Operating Wavelength (nm) | 1260～1650 | ||||||
| Insertion Loss | Typical | 3.8 | 7.4 | 10.8 | 14.2 | 17.0 | 21.0 |
| Max | 4.2 | 7.8 | 11.2 | 14.6 | 17.5 | 21.5 | |
| Loss Uniformity (dB) | Max | 1.0 | 1.4 | 1.5 | 2.0 | 2.5 | 2.5 |
| Return Loss (dB) | Min | 50 | 50 | 50 | 50 | 50 | 50 |
| Polarization Dependent Loss(dB) | Max | 0.2 | 0.2 | 0.4 | 0.4 | 0.4 | 0.5 |
| Directivity (dB) | Min | 55 | 55 | 55 | 55 | 55 | 55 |
| Wavelength Dependent Loss(dB) | Max | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 1.0 |
|
Temperature Dependent Loss (-40～85°C) (dB) |
Max | 0.5 | 0.5 | 0.8 | 0.8 | 0.8 | 1.0 |
| Operating Temperature (°C) | -40~85 | ||||||
| Storage Temperature (°C) | -40~85 | ||||||
| Packaging Size (mm) | 40×4×4 | 40×4×4 | 50×4×4 | 50×4×4 | 60×7×4 | ||
| 19’’ Rack mount Package (mm) | 1U, 440*200*44 | ||||||
Notes: 1.Specifications without fiber connectors.
2.Room temperature test .
Package (mm)
Order Information
| Part No. | Specifications |

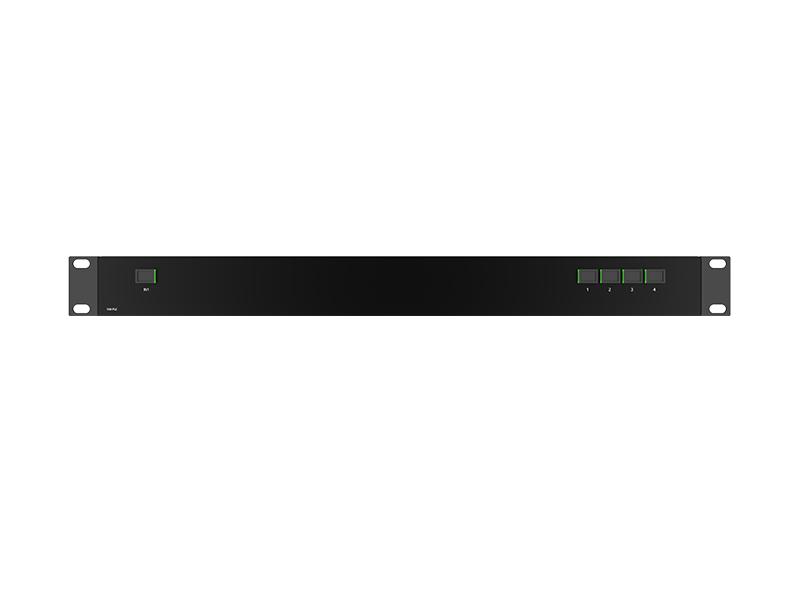

| 1P4-1U02A | 1x4 PLC SC/APC 1U Rack 440*200*44mm |
